Monoaxial IEPE Accelerometers

Model Image Sensitivity Weight Temperature Range
Miniature IEPE Accelerometers
A/128/V A128 1mV/g up to 10mV/g (±10%) 0.19gm -50°C to 200°C Max. Temp.

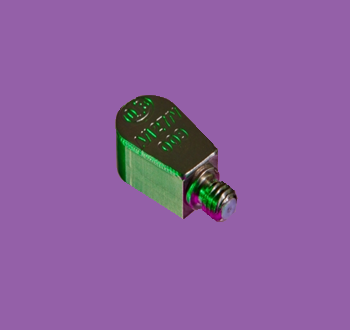

A/127/V A127 Web 1mV/g up to 100mV/g (±10%) 1.5gm -50°C to 125°C Std. (185°C HT version)

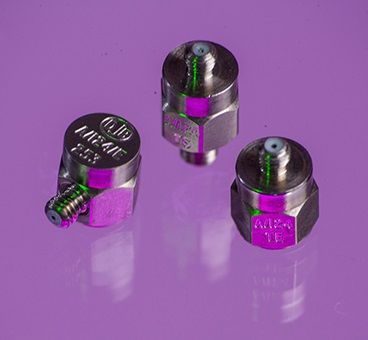

A/124/E Djb A124 Web 1mV/g up to 200mV/g (±10%) 2gm -50°C to 125°C Std. (185°C HT version)
Model Image Sensitivity Weight Temperature Range
General Purpose IEPE Accelerometers

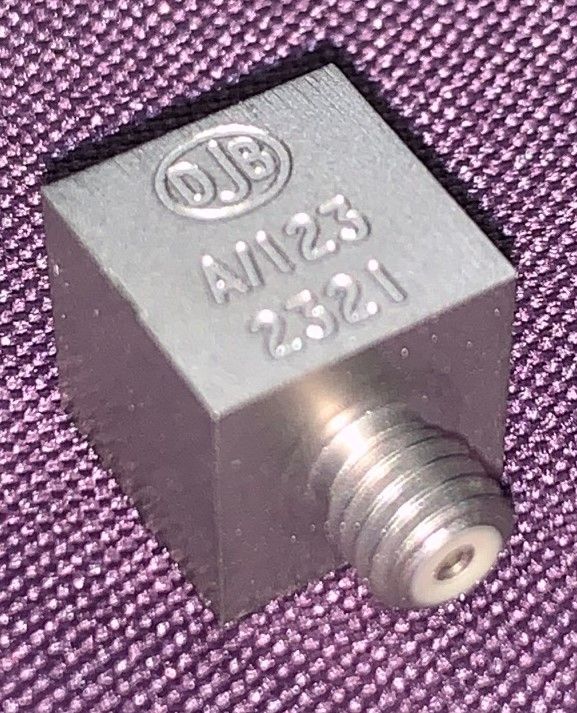

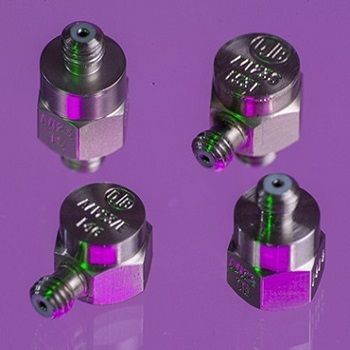

A/123/E Djb A123 Web 1mV/g up to 250mV/g (±10%) 3.6-5.2gm -50°C to 125°C Std. (185°C HT version)

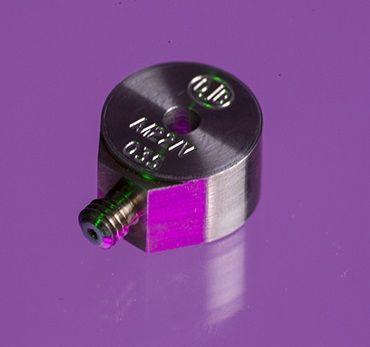

A/122/V Djb A122 Web 10mV/g up to 1V/g (±10%) 12gm -50°C to 125°C Std. (185°C HT version)

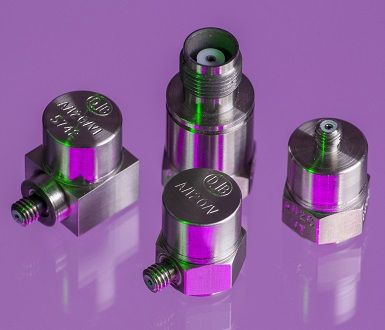

A/120/V Djb A120 Web 10mV/g up to 1V/g (±10%) 12.5gm -50°C to 125°C Std. (185°C HT version)
Model Image Sensitivity Weight Temperature Range
High Sensitivity IEPE Accelerometers

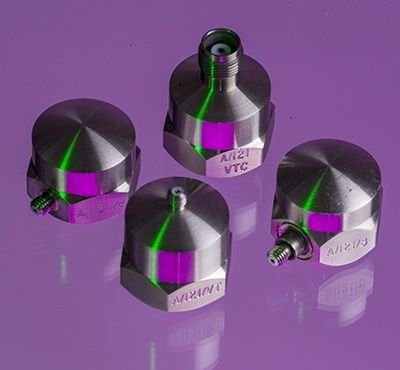

A/121/V Djb A121 Web 100mV/g up to 3V/g (±10%) 90gm -50°C to 125°C Std. (185°C HT version)
Model Image Sensitivity Weight Temperature Range
Seismic Micro G IEPE Accelerometers
A/1600 Djb A600 Web 1mV/g up to 10V/g (±10%) 112gm -50°C to 125°C Std. (185°C HT version)
A/1800 Djb A800 Web 10mV/g (±10%) 400-407gm -50°C to 125°C Std.
Model Image Sensitivity Weight Temperature Range
Calibration Reference IEPE Accelerometer
A/120/CR Djb A120 Web 10mV/g or 100mV/g (±10%) 24gm -50°C to 125°C
Model Image Sensitivity Weight Temperature Range
High Shock IEPE Accelerometers

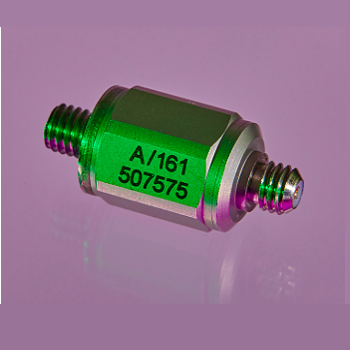

A/161 A161a 0.5mV/g 10gm -40°C to 121°C

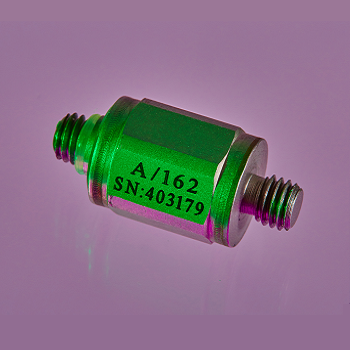

A/162 A162a 0.2mV/g 10gm -40°C to 121°C

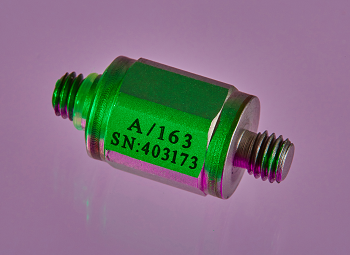

A/163 A163 0.1mV/g 16gm -40°C to 121°C
Model Image Sensitivity Weight Temperature Range
Industrial IEPE Accelerometers
A/1107/V A107 10mV/g (±10%) 80gm 400°C
A/172/VF Djb Industrial 72 Web 100mV/g (±10%) 130gm 185°C Max. Temp.
Model Image Sensitivity Weight Temperature Range
DJB Impedance Head

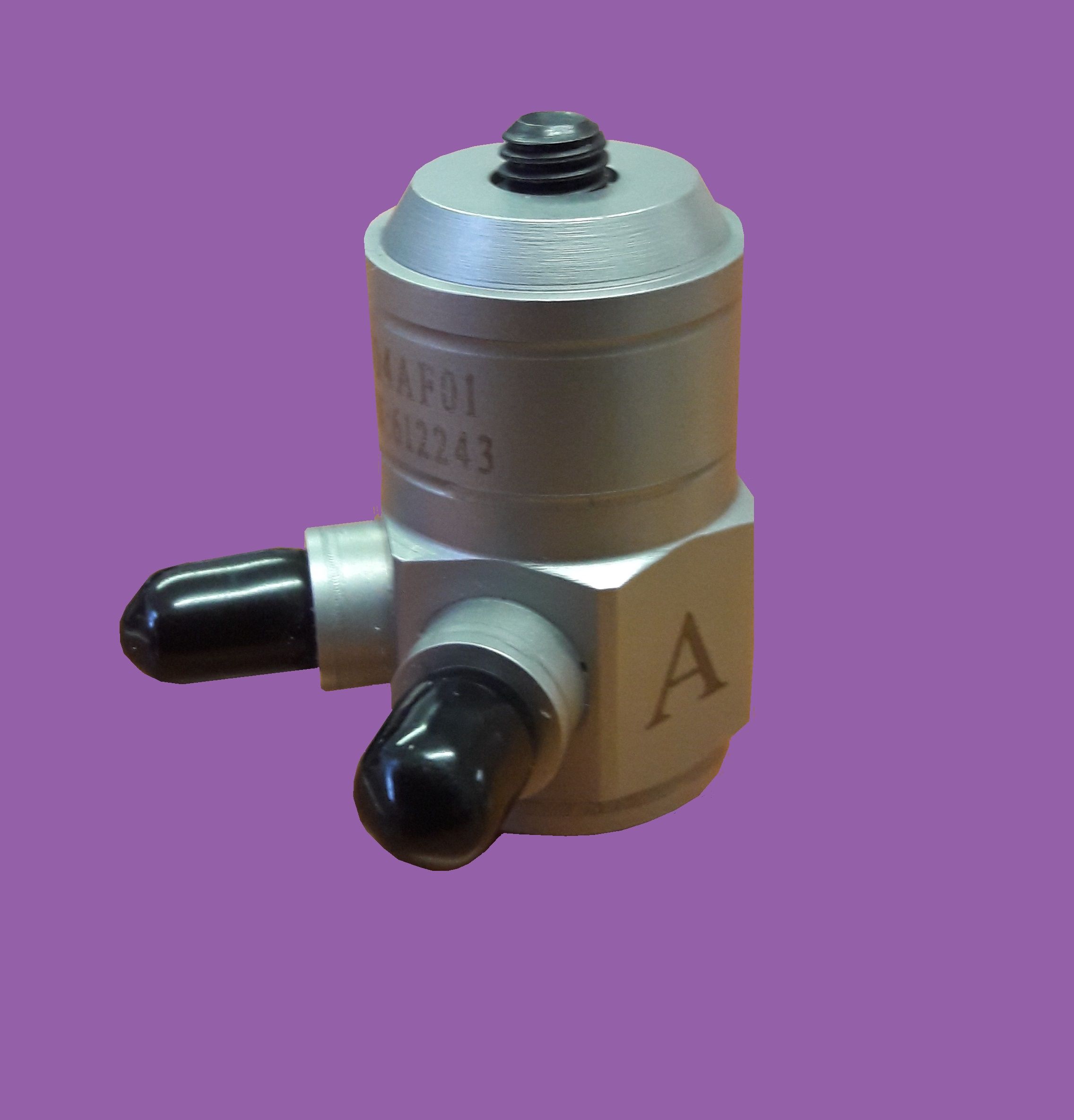

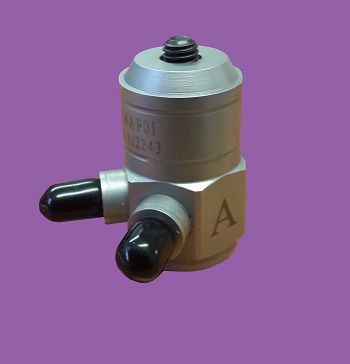

AF/50 Af Impedance Head 50mV/g 30gm -40°C to 121°C
Model Image Sensitivity Weight Temperature Range
Low Cost Industrial IEPE Accelerometers

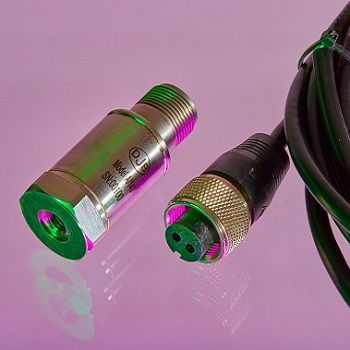

A/140 A140 100mV/g (±10%) 76gm -50°C to 120°C

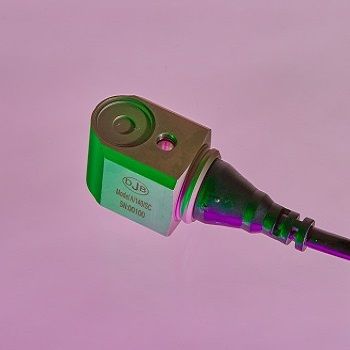

A/140/S A140s 100mV/g (±10%) 81gm -50°C to 120°C

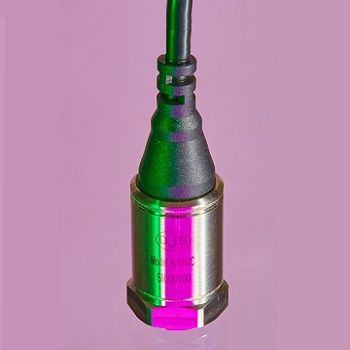

A/140/C A140c 100mV/g (±10%) 76gm -50°C to 140°C
