Impact Hammers

The IH range of impact hammers offer a range of 7 hammers ranging from 50N to 50000N.

The hammers all feature IEPE integrated electronics force transducers for simple connection - direct to analysis front ends or to voltage source instrumentation.

The IH series IEPE impact hammer range features a rugged force sensor that is integrated into the hammers striking surface.The force sensor serves to provide a measurement of the amplitude of the energy stimulus that is imparted to a test object. A variety of tips supplied with each hammer permit the energy content of the force impulse to be tailored to suit the requirements of the item under test. Using multi-channel data acquisition and analysis software, the test engineer is able to ascertain a variety of mechanical properties leading to an understanding of an objects structural behaviour. Items analysed can include resonance detection, mode shapes, transfer characteristics, and structural health, such as crack and fatigue detection.

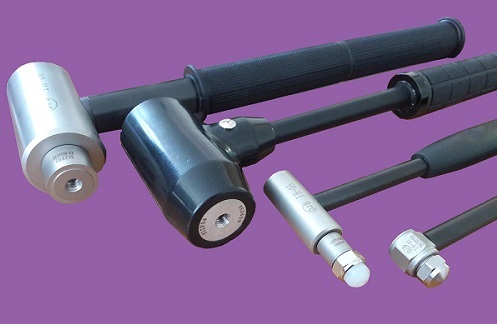

Selection of impact hammers

IH series impact hammers can be applied for Structure Health Testing, Resonance Determination, Modal Analysis etc.used in association with DJB’s wide range of accelerometers full response data can be captured during impact testing.

All IH Impact Hammers come in their own case with cables and tips.

Model Image Sensitivity Hammer Head Weight Hammer Head Diameter Hammer Length Output Tips Supplied

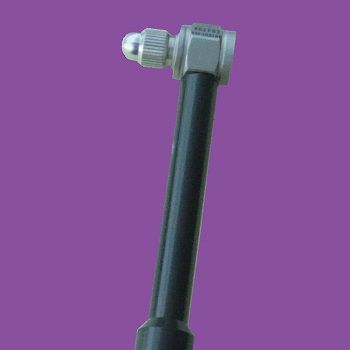

IH-01-50 Ih 01 50 Web 100mV/N 15gm 14mm 130mm M5 Soft, medium, hard, aluminium

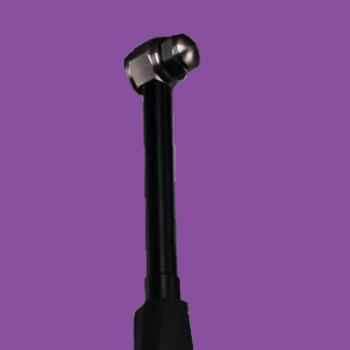

IH-01 Ih01 Web 25mV/N 28gm 18mm 250mm BNC Soft, medium, hard, aluminium

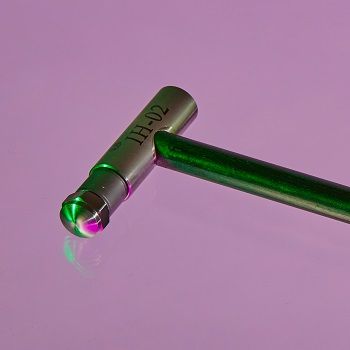

IH-02 Ih02 Web 2.5mV/N 80gm 16mm 250mm BNC Soft, medium, hard, aluminium

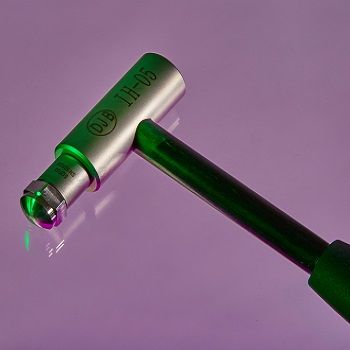

IH-05 Ih 05 1mV/N 120gm 20mm 250mm BNC Rubber, nylon, aluminium, steel

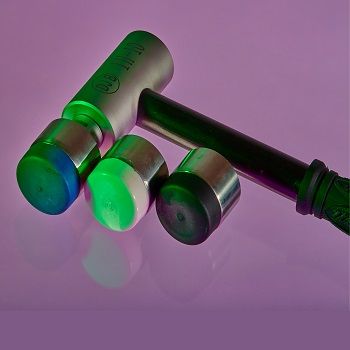

IH-10 Ih10 Web 0.5mV/N 445gm 32mm 340mm BNC Soft, medium, hard

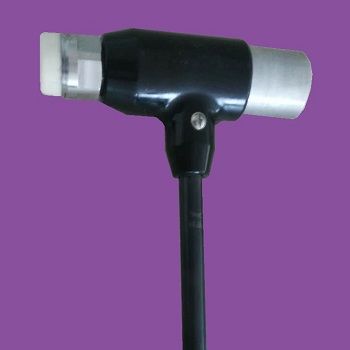

IH-20 Ih 20 Purple Background Web 0.25mV/N 445gm 32mm 340mm BNC Soft, medium, hard
IH-50 Hammers Ih50 0.1mV/N 1000gm 51mm 400mm BNC Soft, medium, hard
