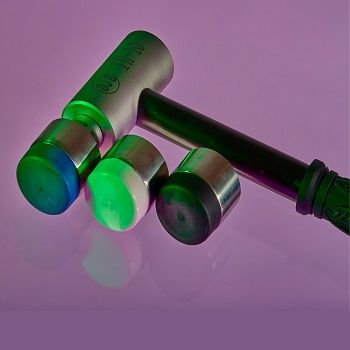

Instrumented Impact Hammer IH-10 - 10kN Range

 Datasheet

The IH-10 impact hammer belongs to a range of general purpose hammers used for structural health testing, resonance determination and modal analysis, the IH-10 itself being suitable for heavy sized components.

Included within the hammer is a piezoelectric IEPE force sensor in which directly outputs a voltage signal.
Each hammer is supplied as a kit including a cable and a variety of tips able to suit a variety of testing requirements.

The IH-10 has a BNC terminating connector. Impact pulse width and frequency response varies with different hammer heads and tips. It should be based on actual tests.

Specification

Model IH-10
Sensitivity 0.5mV/N
Hammer Head Weight 445gm
Hammer Head Diameter 32mm
Hammer Length 340mm
Output BNC
Tips Supplied Soft, medium, hard
