Triaxial IEPE Accelerometers

Model Image Sensitivity Weight Temperature Range
Miniature Triaxial IEPE Accelerometers

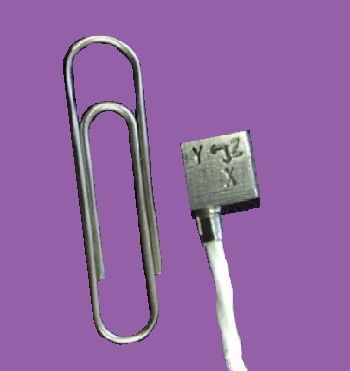

AT/18 At18 Web1 1mV/g up to 10mV/g 1.2gm -50°C to 200°C Max Temp

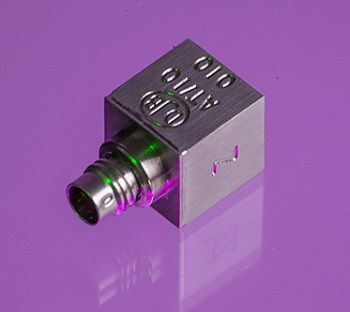

AT/10 Djb At01 Web 1mV/g up to 100mV/g 6.9gm -50°C to 125°C Std. Temp (185°C High Temp)
Model Image Sensitivity Weight Temperature Range
General Purpose Triaxial IEPE Accelerometers
AT/14 At14 1mV/g up to 200mV/g 12-18gm -50°C to 125°C Std. Temp (185°C High Temp)

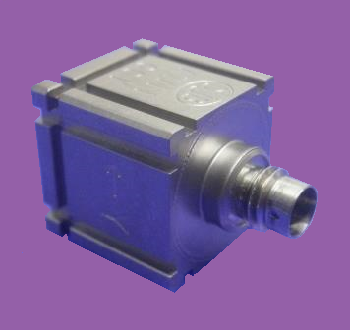

AT/11 At11 Web1 1mV/g up to 100mV/g 17gm -50°C to 125°C Std. Temp (185°C High Temp)

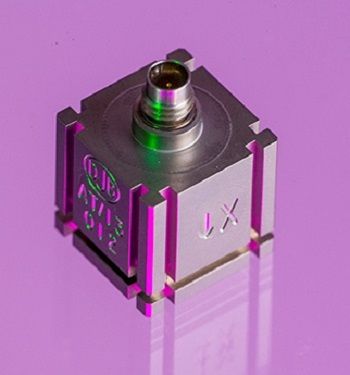

AT/13 At13 Web 1mV/g up to 100mV/g 23gm -50°C to 125°C Std. Temp (185°C High Temp)

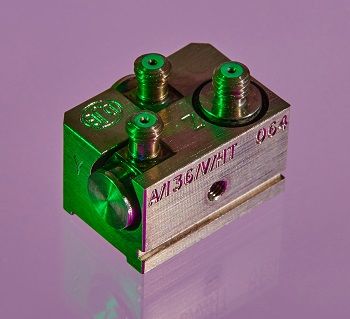

A/136 A136 Web 1mV/g up to 200mV/g 18gm -50°C to 125°C Std. Temp (185°C High Temp)

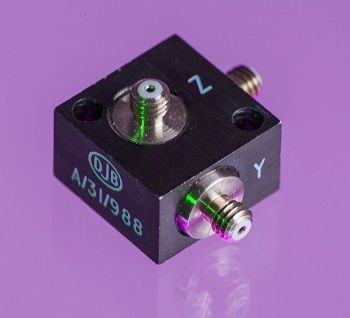

A/131 Djb A31 Web 10mV/g up to 500mV/g 19gm -50°C to 125°C Std. Temp (185°C High Temp)

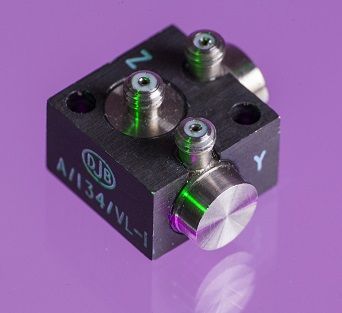

A/134 A134 Web 1mV/g up to 200mV/g 19-22gm -50°C to 125°C Std. Temp (185°C High Temp)

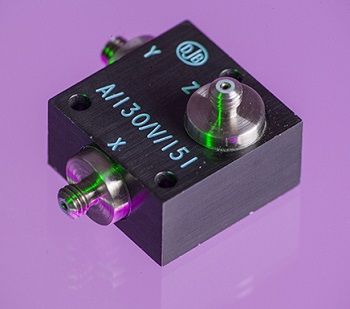

A/130 A130 Web 10mV/g up to 500mV/g 41gm -50°C to 125°C Std. Temp (185°C High Temp)
Model Image Sensitivity Weight Temperature Range
High Temperature Triaxial IEPE Accelerometers
A/133/V A133 Web 1mV/g up to 250mV/g 38gm -50°C to 900°C Max Temp WITH WATER FLOW
