Miniature Piezoelectric Accelerometer A/27/E

2pC/g nom.  ∙  1.4gm  ∙  -50°C to 200°C Max Temp


• 1.8gm Ultra Lightweight Design
• 11.1 x 7.1 x 5.4mm
• -50˚C • 200˚C
• M3.5 KP
• Konic Shear Piezo-Ceramic
• Adhesive mounting with detachment tool for easy mounting/removal included


  • Modal Analysis of lightweight structures
  • Automotive
  • Aerospace
  • Machine Monitoring
  • Condition Monitoring
  • Impact Testing
  • Industrial
  • Vibration Shaker Testing
  • Structural Testing
  • Auto/Aero structural body surveys

Sub-miniature teardrop charge output accelerometer. Manufactured in Titanium and features an all welded construction for a robust build. Using the DJB unique Konic Shear® sensing element the low mass of the A/27/E renders it transparent in the vast majority of light weight structure vibration measurement applications.   The A/27/E is adhesive mounted. A detachment  tool is provided to shear adhesive joints.  Shock removal is to be avoided as being  deleterious to the integrity of the transducer.   Abrasive cleaning of the attachment face will  reduce base thickness over time; sparing use of adhesive will aid longevity and data accuracy.  All welded hermetically sealed construction.


All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

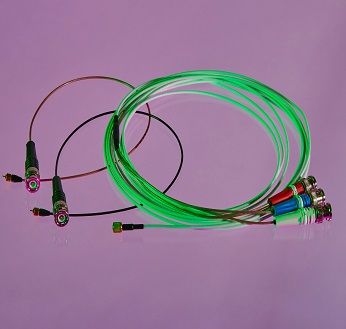

Cable Assembly and Repair Service

  • Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
  • Specialist Cable Assembly - for all manufacturers
  • Cable and connector stock held for a quick turnaround
