Industrial Piezoelectric Accelerometer A/107/F

100pC/g nom. - A/107/F : 10pC/g nom. - A/107/F/HT, A/107/F/HT-1  ∙  80gm  ∙  260-400°C

Model Variations

A/107/F, A/107/F/HT, A/107/F/HT-1

Features

• Rugged Design with Integral Hardline Cable.

Options
• Temperature calibration to 260°C (F)
• Temperature calibration to 400°C (F/HT) (F/HT-1)
• Proof pressure testing to 80bar
• A/107F (100pC/g)
• A/107F/HT A/107/F/HT-1 (10pC/g) High Temperature version up to 400°C

Applications

  • Aerospace
  • High Temperature
  • Machine Monitoring
  • Condition Monitoring
  • Industrial
  • General Vibration Measurement
  • Bearing analysis

Industrial and Aerospace grade vibration transducers with the high temperature 10pC/g version rating up to 400ºC.  Signal output is floating, via 2 pole hermetic  connector, thus minimizing common mode  interference.

As with all PE accelerometers the ingress of contaminants into the  transducer and/or connector will degrade data.  Transducers and cables can be supplied proof  pressure tested to 80bar, individually and as  assemblies. The HT is proof to 400ºC Exposure and is therefore suitable for gas turbine bearing vibration monitoring, with the proviso that a low pass inline filter may be needed to minimize blade passing frequency modulation, which gives rise to spurious phantom low frequency signal generation.   High temperature operation of the HT may be subject to degradation due to increased pyro-electric charge generation, together with significant fall in insulation resistance. Instrumentation bandwidth should be constrained to the minimum needed for measurement integrity. A/107’s comprise isolated welded hermetic case. Internal electrical connections are welded. Pressure and thermal cycle tests are recommended for hostile environment applications

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

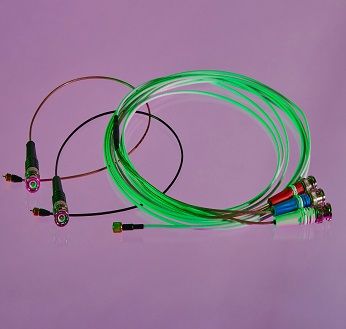

Cable Assembly and Repair Service

  • Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
  • Specialist Cable Assembly - for all manufacturers
  • Cable and connector stock held for a quick turnaround
