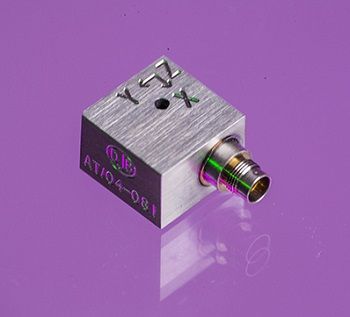

Piezoelectric Triaxial Accelerometer - AT/04

5pC/g nom.  ∙  13-16.6gm  ∙  -50°C to 200°C Max Temp

Model Variations

AT/04, AT/04/TB, ATI/04

Features

• Adhesive Mounting or 10-32 Tapped base
• Lightweight design
• 3 x KONIC Shear Sensing Element for minimised cross axis.
• Can be used at -70°C with a ±10% sensitivity variation
• Electrically Insulated individual inserts, eliminating ground loop interference.

Applications

  • Modal Analysis of lightweight structures
  • Automotive
  • Aerospace
  • Impact Testing
  • Industrial
  • Vibration Shaker Testing

A lightweight tri-axial vibration transducer comprising of three charge output Konic Shear piezoelectric sensing elements mounted orthogonally within a titanium block with fully welded construction. The AT/04 is based upon the A/24 single axis sensing element and maybe considered as an alternative to the A/31 or A/34. However, the latter by virtue of being a grouping of single axis devices, are repairable and in addition the physical separation of the cable leads to visible signal axis traceability.

With a 4 pin connector available with standard or ruggedized single cables with three BNC labelled breakout leads the AT/04 is well suited to Automotive/Aerospace applications

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

Cable Assembly and Repair Service

  • Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
  • Specialist Cable Assembly - for all manufacturers
  • Cable and connector stock held for a quick turnaround
