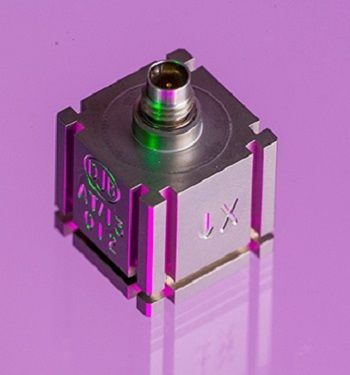

The AT/13 has been developed primarily for the Modal
Analysis and Structural test marketplace with particular focus on the
Automotive and Aerospace markets. The slotted sides and a slotted base allow it
to be mounted on 5 of its faces by sliding into the accompanying clip. Users
can then mount the clips using normal glue methods and slide the accelerometers
in and out of the clip as required. This ensures perfect repeatability for
tests without the need for leaving the accelerometer in situ. In addition, for
large channel count testing, all accelerometers can be mounted in the same
orientation making software set up easier.
Manufactured in Titanium for low mass and long life, the
AT/13 has three individual Konic Shear sensing elements internally mounted in
the three orthogonal axes; this provides excellent performance in each axis
with minimal cross axis effects.
The AT/13 is available as charge output or as IEPE voltage
Clip part number CL/01 can be ordered separately. Also
available is the CL/02 which has a thicker base and can be modified to suit
specific user applications.
All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed.
Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data.
We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
Cable Assembly and Repair Service
- Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
- Specialist Cable Assembly - for all manufacturers
- Cable and connector stock held for a quick turnaround
