Miniature Triaxial Piezo-Tronic Triaxial IEPE Accelerometer - AT/10

1mV/g up to 100mV/g  ∙  6.9gm  ∙  -50°C to 125°C Std. Temp (185°C High Temp)

Model Variations

AT/10, AT/10/TB, AT/10/F

Features

• Adhesive Mounting
• Lightweight Titanium Design
• Three Individual KONIC Shear Sensing Elements for minimal cross axis effects
• Rugged design
• Range of sensitivities available

Applications

  • Modal Analysis of lightweight structures
  • Automotive
  • Aerospace
  • Impact Testing
  • Vibration Shaker Testing
  • Structural Testing

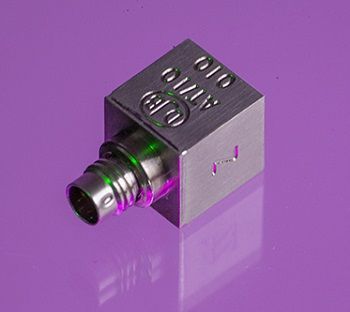

 A lightweight miniature triaxial IEPE vibration transducer comprising of three voltage output piezo-electric accelerometer elements mounted orthogonally within a titanium block. The use of independent Konic Shear sensing elements ensures a rugged and repeatable triaxial measurement under the most extreme conditions. This design will outperform single element devices. The AT/10 uses high temperature piezo-ceramics as standard to ensure thermal stability. Using the industry standard ¼-28 UNF 4 pin connector for a single cable connection, cable assemblies of any length can be provided breaking out to 3 BNC plugs.

The AT/10 is available with DJB’s unique high temperature IEPE solution capable of testing up to 185°C as an option.

Standard sensitivity options are 1mV/g up to 100mV/g

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

Cable Assembly and Repair Service

  • Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
  • Specialist Cable Assembly - for all manufacturers
  • Cable and connector stock held for a quick turnaround
