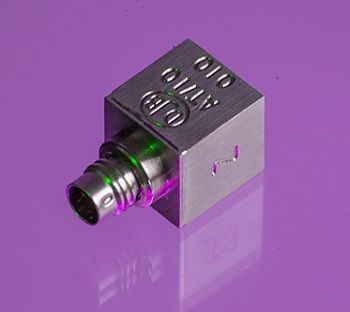

Miniature Piezoelectric Triaxial Accelerometer - AT/01

2pC/g nom.  ∙  6.8-9.9gm  ∙  -50°C to 200°C Max Temp

Model Variations

AT/01, AT/01/TB, AT/10/F

Features

• Adhesive Mounting
• Lightweight design
• 3 x KONIC Shear Sensing Element for minimised cross axis.



Applications

  • Modal Analysis of lightweight structures
  • Automotive
  • Aerospace
  • Impact Testing
  • Industrial
  • Vibration Shaker Testing

A lightweight miniature triaxial vibration transducer comprising of three charge output piezo-electric accelerometer elements mounted orthogonally within a titanium block. The use of the Konic Shear independent sensing elements ensures a rugged and repeatable triaxial measurement under the most extreme conditions. This design will outperform single element devices. The AT/01 uses high temperature piezo-ceramics as standard to ensure thermal stability. Using the industry standard ¼-28 UNF 4 pin connector for a single cable connection, cable assemblies of any length can be provided breaking out to 3 BNC plugs.

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

Cable Assembly and Repair Service

  • Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
  • Specialist Cable Assembly - for all manufacturers
  • Cable and connector stock held for a quick turnaround
