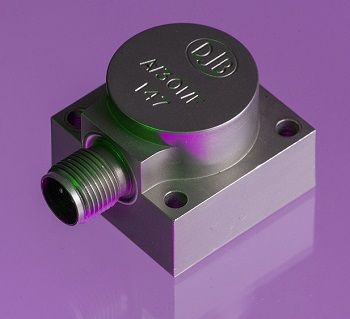

Industrial Piezoelectric Accelerometer A/301/F

220pC/g nom. A/301/F 25pC/g nom. A/301/F/HT  ∙  150gm  ∙  260-400°C

Model Variations

A/301/F, A/301/F/HT

Features

Options
• Temperature calibration to 400°C
• Proof pressure testing to 80bar
• Close tolerance output



Applications

  • Aerospace
  • Machine Monitoring
  • Condition Monitoring
  • Industrial
  • General Vibration Measurement
  • Bearing analysis

High output industrial grade vibration transducers.

High temperature (A/301/F/HT) 25pC/g version is rated to 400°C signal output is floating, via 2 pole hermetic connector, thus minimizing common mode interference.   Ingress of contaminants into the transducer and/or connector will degrade data.  Transducer and cables can be supplied proof pressure tested to 80bar, individually and as assemblies. Pressure tested assemblies may be disconnected for ease of installation, subsequently replacing the sealing ring between the connector shells. The /HT is proof to 400°C exposure and is therefore suitable for a gas turbine bearing vibration monitoring with the provision that a low pass inline filter may be needed to minimize blade passing frequency modulation, which gives rise to spurious phantom low frequency signal generation.   High temperature operation of the HT may subject to degradation due to increased pyro-electric charge generation, together with a significant fall in insulation resistance. Instrumentation bandwidth should be constrained to the minimum needed measurement integrity. A/301’s comprises isolated Konic Shear sensing element housed in all welded hermetic case. Internal electrical connections are welded.   Pressure and thermal cycle tests are recommended for hostile environment applications

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

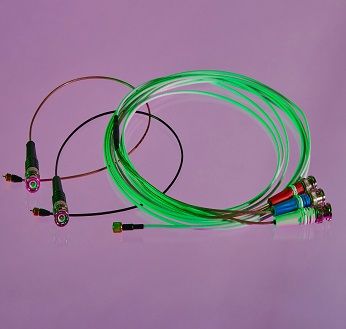

Cable Assembly and Repair Service

  • Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
  • Specialist Cable Assembly - for all manufacturers
  • Cable and connector stock held for a quick turnaround
