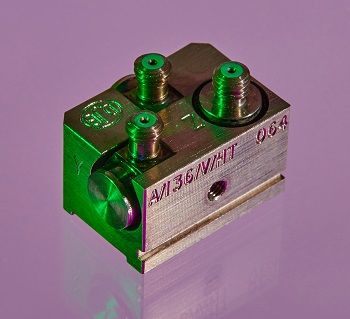

Piezo-Tronic Triaxial IEPE Accelerometer - A/136

1mV/g up to 200mV/g ∙ 24.9gm ∙ -50°C to 125°C

Features

• Adhesive Mounting or Clip Mounting for easy mounting/removal.
• Lightweight design
• KONIC Shear Sensing Element.
• Connector - 10/32 Microdot

Applications

Modal Analysis of lightweight structures
Automotive
Aerospace
Machine Monitoring
Condition Monitoring
Impact Testing
Industrial
Vibration Shaker Testing
Structural Testing
Auto/Aero structural body surveys

Triaxial accelerometer comprising of three independent Konic Shear® IEPE voltage output Piezo-Tronic accelerometers mounted orthogonally within a titanium block. Each sensor has a fully welded construction and each axis is calibrated individually in addition to the block calibration.

All the Microdot connectors are exiting in the same direction. Each insert is electrically insulated, individually from the housing, thus eliminating ground loop interference.

The multi sensor solution also offers the benefit of being repairable. If an insert is damaged it can usually be removed and replaced saving the cost of a new accelerometer.

The A/136 can be adhesive mounted or clip mounted.

A/36-1 Features M3 cut through holes for mounting.

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

Cable Assembly and Repair Service

Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
Specialist Cable Assembly - for all manufacturers
Cable and connector stock held for a quick turnaround
