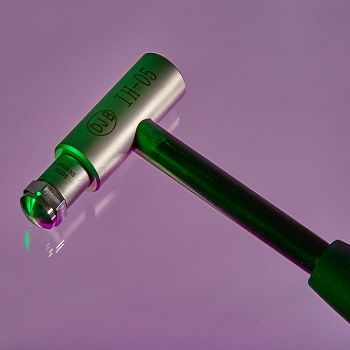

Instrumented Impact Hammer IH-05 - 5kN Range

 Datasheet

The IH-05 impact hammer belongs to a range of general purpose hammers used for structural health testing, resonance determination and modal analysis, the IH-05 itself being suitable for medium sized structures.

Included within the hammer is a piezoelectric IEPE force sensor in which directly outputs a voltage signal.
Each hammer is supplied as a kit including a cable and a variety of tips able to suit a variety of testing requirements.

The IH-05 has a BNC terminating connector and an additional mass (optional) that can be attached to the rear of the hammer head. Impact pulse width and frequency response is different with different hammer heads and tips. It should be based on actual tests.

Specification

Model IH-05
Sensitivity 1mV/N
Hammer Head Weight 120gm
Hammer Head Diameter 20mm
Hammer Length 250mm
Output BNC
Tips Supplied Rubber, nylon, aluminium, steel
