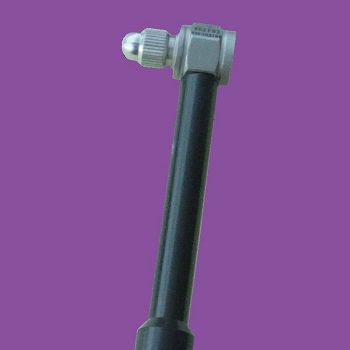

Instrumented Impact Hammer IH-01-50 - 50N Range
The IH-01-50 impact hammer belongs to a range of general purpose hammers used for structural health testing, resonance determination and modal analysis, the IH-01-50 itself being suitable for testing of lightweight structures such as PCB's.
Included within the hammer is a piezoelectric IEPE force sensor in which directly outputs a voltage signal.
Each hammer is supplied as a kit including a cable and a variety of tips able to suit a variety of testing requirements.
The IH-01-50 has an M5 Microdot terminating connector. Impact pulse width and frequency response is different with different hammer heads and tips.
|Hammer Head Weight||15gm|
|Hammer Head Diameter||14mm|
|Tips Supplied||Soft, medium, hard, aluminium|
