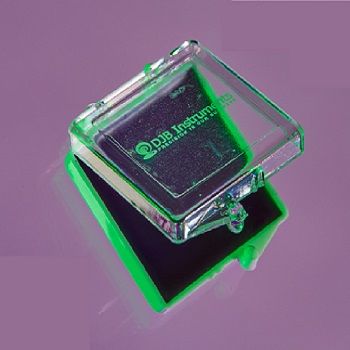

Connectorsandjoiners Accelerometer Cables Accelerometer mounting petro wax Fb1 120 x 120 rounded

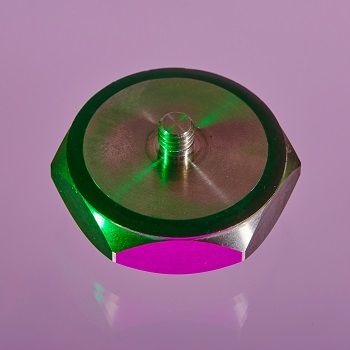

Connectors and Joiners Cables Accelerometer Mountings Petro Wax Triaxial mounting blocks


Accelerometer Cables

Any sensor must be connected to its measurement instrument via a cable, DJB Instruments holds a stock of over 20 different tyes of signal cable from just 0.8mm diameter, including low noise and armoured solutions. In addition we hold over 100 different types of connector in stock, many of which we manufacture ourselves. Cable assemblies are made to order and can be supplied in as little as 24 hours, or if you are truly desperate and can get to the factory we will make it while you wait!

We also offer a cable repair service on all DJB and non DJB cables

Examples of Ordering accessories

Eg. 1:

A cable assembly comprising of a microdot plug connecting to a right angle Microdot via 2.0mm P.V.C low noise cable 8.5 meters long (from the end of the connectors) with 5 meters of UI 7/32" convoluted cable armouring would have an order reference number: MP2/MR/P20/85/A7/50. Length in decimetres (If no cable armour is required leave appropriate blank space). If the cable assembly is to have only one connector with the cable open at the other end replace the second connector code with an X.

Eg. 2:

A cable assembly comprising of a Microdot plug connecting to another Microdot plug via 1.8mm P.T.F.E.low noise cable 5 meters in length would have an order reference as follows: MP2/MP2/T18/50. Length in decimetres

Eg. 3:

A cable assembly comprising of a 7/16" UNS free socket connected to 2.3mm 2 core P.T.F.E low noise cable open at one end 8 meters long would have an order reference as follows: 7S/X/T23/80. Length in decimetres
