Piezo-Tronic IEPE Accelerometer - A/123/E
1mV/g up to 250mV/g (±10%) ∙ 3.6-5.2gm ∙ -50°C to 125°C Std. (185°C HT version)
Model Variations

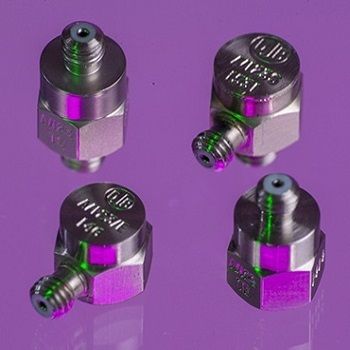

A/123/E, A/123/S, A/123/TS, A/123/TE, A/123/TB, A/123/EB
Features
• Lightweight Design
• Microdot Connector
• Available as 10 or 100mV/g output.
• High Temperature operation up to 185°
Applications
- Modal Analysis of lightweight structures
The A/123 range of Piezo-tronic IEPE accelerometers features the Konic Shear design sensing element, including a hybrid QVC, packaged to offer a choice of side/top entry connector, integral stud or flat base (for adhesive mounting). Ideal for applications requiring a low mass compact design for minimal mass loading effect the A/123 offers wide frequency band with a linear response. Available as a high temperature IEPE accelerometer with a max operating temperature of 185°C the A/123 is a highly versatile and robust accelerometer. Applications include, modal testing, general vibration testing, NVH, package testing, shock testing etc. NOTE: Voltage sensitivities shown are standard. We offer a wide range of sensitivities on request, and recommend that applications are evaluated to determine the requisite sensitivities
Calibration
All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
Cable Assembly and Repair Service
- Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
- Specialist Cable Assembly - for all manufacturers
- Cable and connector stock held for a quick turnaround
