Ultra Miniature Piezoelectric Triaxial Accelerometer - AT/08

0.4pC/g nom.  ∙  1.2gm  ∙  -50°C to 200°C Max Temp

Features

• Adhesive Mounting
• Lightweight ultra miniature design
• 3 x Shear Sensing Element.
• Electrically Insulated individual inserts, eliminating ground loop interference.



Applications

  • Modal Analysis of lightweight structures
  • Automotive
  • Aerospace
  • Impact Testing
  • Industrial
  • Vibration Shaker Testing
  • Structural Testing
  • Auto/Aero structural body surveys
  • General Vibration Measurement

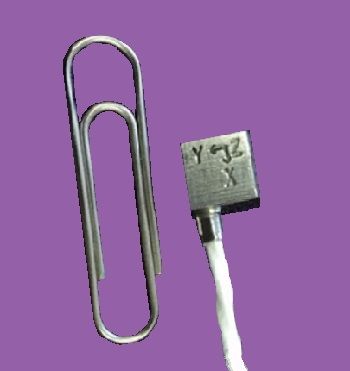

An Ultra-lightweight miniature triaxial vibration transducer comprising of three voltage output piezo-electric accelerometer elements mounted orthogonally within a stainless steel block. It makes use of the independent shear plate sensing elements, ensuring a rugged and repeatable triaxial measurement under the most extreme conditions. This design will outperform single element devices. The AT/08 uses high temperature piezo-ceramics as standard to ensure thermal stability.

The accelerometer features a 1m integral cable which terminates with the industry standard 1/4-28 UNF socket. It can also be supplied with three 10/32 microdot sockets labelled X, Y and Z.

Extension cable assemblies of any length can be  provided breaking out to 3 BNC plugs.
Standard sensitivity is nominally 0.4pC/g
The AT/08 triaxial accelerometer can also be specified as a low outgassing accelerometer for use in vacuum applications.
TML of 1% or less / CVCM of 0.1% or less

Calibration

All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry

Cable Assembly and Repair Service

  • Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment
  • Specialist Cable Assembly - for all manufacturers
  • Cable and connector stock held for a quick turnaround
